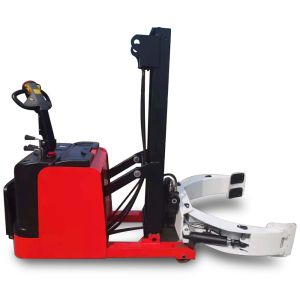

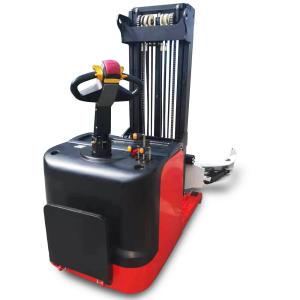

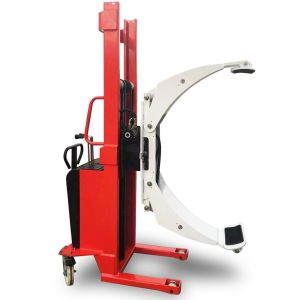

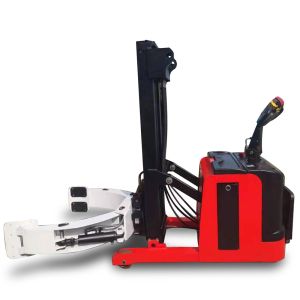

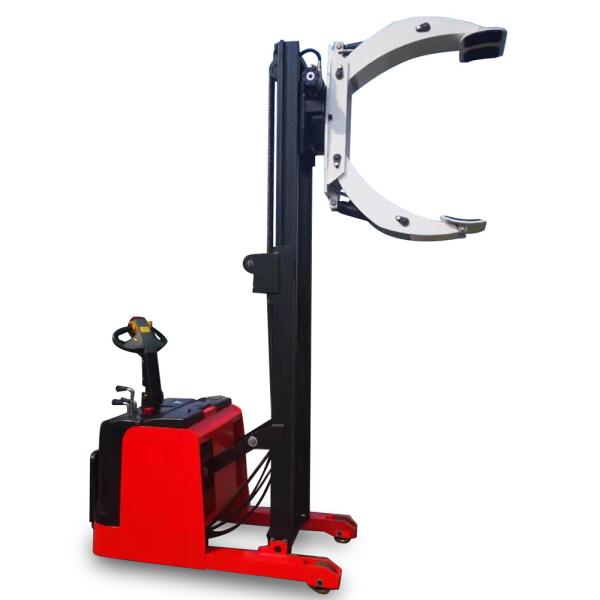

    Full Electric Paper Roll Clamp Stacker with Rotating 90 Degree

    Ask Lasest Price
    Brand Name : KAD
    Certification : CE
    Supply Ability : 1000 Set/Sets per Month
    Price : CN¥54,505.50/units 1-4 units
    • Product Details
    • Company Profile

    Full Electric Paper Roll Clamp Stacker with Rotating 90 Degree

    Product Description

    Product Application

    Full Electric Paper Roll Clamp Stacker with Rotating 90 Degree
    The roll clamp attachment lifts reels of material, such as paper, from the vertical position and rotates to the horizontal position, by means of powered motorised clamping and rotation.
    The roll clamp attachment is used for gripping loads by the diameter or circumference such as reels, rolls, drums, barrels etc

    power source
    Battery
    rated load
    kg
    500kg/customized
    load center
    mm
    500
    operation way
    Standing operation,electric lifting,electric gripper,electric rotating,electric moving
    turning radius
    mm
    1050
    aisle width
    mm
    1900
    length
    mm
    1500
    width
    mm
    760
    height
    mm
    2100/customized
    mast
    1-stage mast
    adjustable extent of clamp
    mm
    200~1250
    max height of forks
    mm
    1500
    min height of forks
    mm
    200
    rotation angle
    °
    90°(left and right)/360 degree
    hoisting speed(load/unload)
    mm/s
    110/160
    descent speed(load/unload)
    mm/s
    150/130
    climbing capability
    %
    3,5
    braking mode
    Wheel brake
    tyres,material
    Nylon
    load wheel dimensions
    mm
    85*80,2pcs
    steering wheel dimensions
    mm
    180*50,2pcs
    hydraulic motor
    kw
    24v/2.2kw
    battery
    v/ah
    24/210
    weight
     kg
    1100
    Full Electric Paper Roll Clamp Stacker with Rotating 90 Degree
    Full Electric Paper Roll Clamp Stacker with Rotating 90 Degree
    Full Electric Paper Roll Clamp Stacker with Rotating 90 Degree
    Full Electric Paper Roll Clamp Stacker with Rotating 90 Degree

    Main Features

    The roll clamp attachment lifts reels of material, such as paper, from the vertical position and rotates to the horizontal
    position, by means of powered motorised clamping and rotation.
    The roll clamp attachment is used for gripping loads by the diameter or circumference such as reels, rolls, drums, barrels etc.
