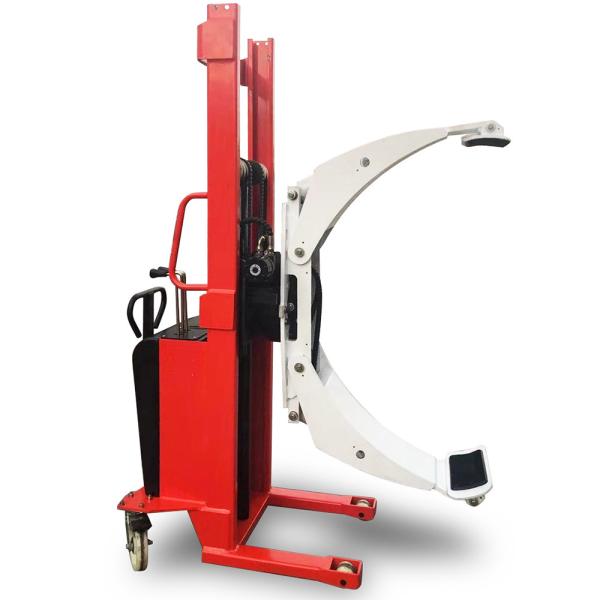

    KAD Paper roll lifting equipment and reel stacker

    Ask Lasest Price
    Brand Name : KAD
    Price : CN¥47,238.10/units 1-4 units
    • Product Details
    • Company Profile

    KAD Paper roll lifting equipment and reel stacker

    Product Description

    Product Application

    The roll clamp attachment lifts reels of material, such as paper, from the vertical position and rotates to the horizontal position, by means of powered motorised clamping and rotation.
    The roll clamp attachment is used for gripping loads by the diameter or circumference such as reels, rolls, drums, barrels etc.
    Paper roll lifting equipment and reel stacker
    power source
    Battery
    rated load
    kg
    250
    load center
    mm
    500
    operation way
    Standing operation,electric lifting,electric gripper,electric rotating,manual moving
    turning radius
    mm
    1050
    aisle width
    mm
    1900
    length
    mm
    1500
    width
    mm
    760
    height
    mm
    2100
    mast
    1-stage mast
    adjustable extent of clamp
    mm
    200~1250
    max height of forks
    mm
    1500
    min height of forks
    mm
    200
    rotation angle
    °
    90°(left and right)
    running speed(load/unload)
    km/h
    manual
    hoisting speed(load/unload)
    mm/s
    110/160
    descent speed(load/unload)
    mm/s
    150/130
    climbing capability
    %
    3,5
    braking mode
    Wheel brake
    tyres,material
    Nylon
    load wheel dimensions
    mm
    85*80,2pcs
    steering wheel dimensions
    mm
    180*50,2pcs
    hydraulic motor
    kw
    12v/2.2kw
    battery
    v/ah
    12/100
    charger
    v/a
    12/15,
    weight
    kg
    450
    KAD Paper roll lifting equipment and reel stacker
    KAD Paper roll lifting equipment and reel stacker
    FEEDBACK
    KAD Paper roll lifting equipment and reel stacker
    KAD Paper roll lifting equipment and reel stacker
    KAD Paper roll lifting equipment and reel stacker
    KAD Paper roll lifting equipment and reel stacker
    Q1. What is your terms of packing? A: Generally, we pack our goods in paper package and Iron pallet. We can pack the goods in your branded boxes after getting your authorization letters. Q2. What is your terms of payment? A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance. Or As negotiated Q3. What is your terms of delivery? A: EXW, FOB, CFR, CIF, DDU. Q4. How about your delivery time? A: Generally, it will take 5 to 30 days after receiving your deposit. The specific delivery time depends on the items and the quantity of your order. Q5. Do you test all your goods before delivery? A: Yes, we have 100% test before delivery Q6: How do you make our business long-term and good relationship? 1. We keep good quality and competitive price to ensure our customers benefit ; 2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
