Name: Control Handle
Brand: KAD
Domestic famous control handle,functional buttons, can control
UP/DOWN, FORWARD/BACKWARD sensitively.
| Sign In | Join Free | My burrillandco.com |
|
| Ask Lasest Price | |
| Brand Name : | KAD |
| Supply Ability : | 500 Set/Sets per Month |
| Price : | CN¥23,873.41/units 1-4 units |

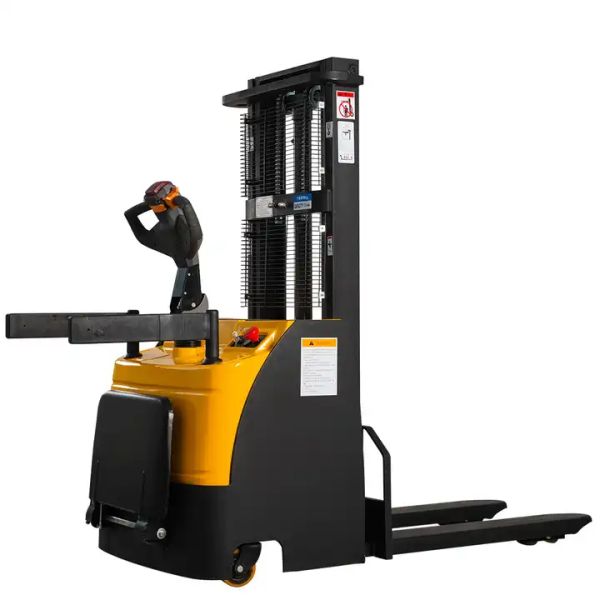

It is suitable for the operation in narrow passage and limited
space, and is the ideal equipment for loading and unloading
palletizing in high-bay warehouses and workshops. It can be widely
used in petroleum, chemical, pharmaceutical, light textile, paint,
pigment, coal and other industries, as well as ports, railroads,
freight yards, warehouses, etc. It can be used to enter into
cabins, compartments and containers for loading and unloading of
palletized goods, stacking and handling operations.






MODEL | CDD12 CDD16 CDD20 | ||||
Features | Drive system | Battery | |||
Features | Driving mode | Standing | |||
Load Capacity | Q | KG | 1200/1600/2000 | ||
Load Center | C | MM | 500 | ||
Weight | Weight(With battery) | KG | 830/880/910/940/970 | ||
Wheels | Material | PU | |||
Size | Lifting Height | H3 | MM | 1600/2000/2500/3000/3500/4000/5000 | |
Lowest Mast | H1 | MM | 2080/1580/1830/2080/2330/1820/2020 | ||
Max.Height when operating | H4 | MM | 2080/2730/3230/3730/4230/4460/4960 | ||
Min.Height of Fork | H13 | MM | ≤90 | ||
Length | L1 | MM | 2130 | ||
Width | B1 | MM | 850 | ||
Size | Fork Length | L | MM | 1070 | |
Wheelbase | Y | MM | 1430 | ||
Fork Outside Width | B5 | MM | 550/680 | ||
Fork Inside Width | MM | 225/355 | |||
Min.Turning Radius | WA | MM | 1738/2099 | ||
Performance | Driving Speed (Empty/Full Load) | MM/S | 6.5/5.0 | ||
Lifting Speed (Empty/Full Load) | MM/S | 80/50 | |||
Descending Speed (Empty/Full Load) | MM/S | 120 | |||
Max.Gradient (Empty/Full Load) | ° | 6 | |||
Brake | Electromagnetic brake | ||||
Driving Motor | KW | DC/0.75/1.2/1.5 | |||
Lifting Motor | KW | DC/2 | |||
Battery | Capacity | V/Ah | 24//210 | ||

Name: Control Handle
Brand: KAD
Domestic famous control handle,functional buttons, can control
UP/DOWN, FORWARD/BACKWARD sensitively.


Strong cylinder and chain make fork run smoothly.
1-stage,2-stage,3-stage mast can be selected.
Side positioned drive system and strong caster, easy to manage
stability.


* Inquiry and consulting support.
* Sample testing support.
* View our Factory.

* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas if become our distributor









Q1. What is your terms of packing?
A: Generally, we pack our goods in paper package and Iron pallet.
We can pack the goods in your branded boxes after getting your
authorization letters.
Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the
photos of the products and packages before you pay the balance. Or
As negotiated
Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.
Q4. How about your delivery time?
A: Generally, it will take 5 to 30 days after receiving your
deposit. The specific delivery time depends on the items and the
quantity of your order.
Q5. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q6: How do you make our business long-term and good relationship?
1. We keep good quality and competitive price to ensure our
customers benefit ;
2. We respect every customer as our friend and we sincerely do
business and make friends with them, no matter where they come
from.
CONTACT: STEVE SU
TAIZHOU KAYOND MACHINERY CO.,LTD
|
